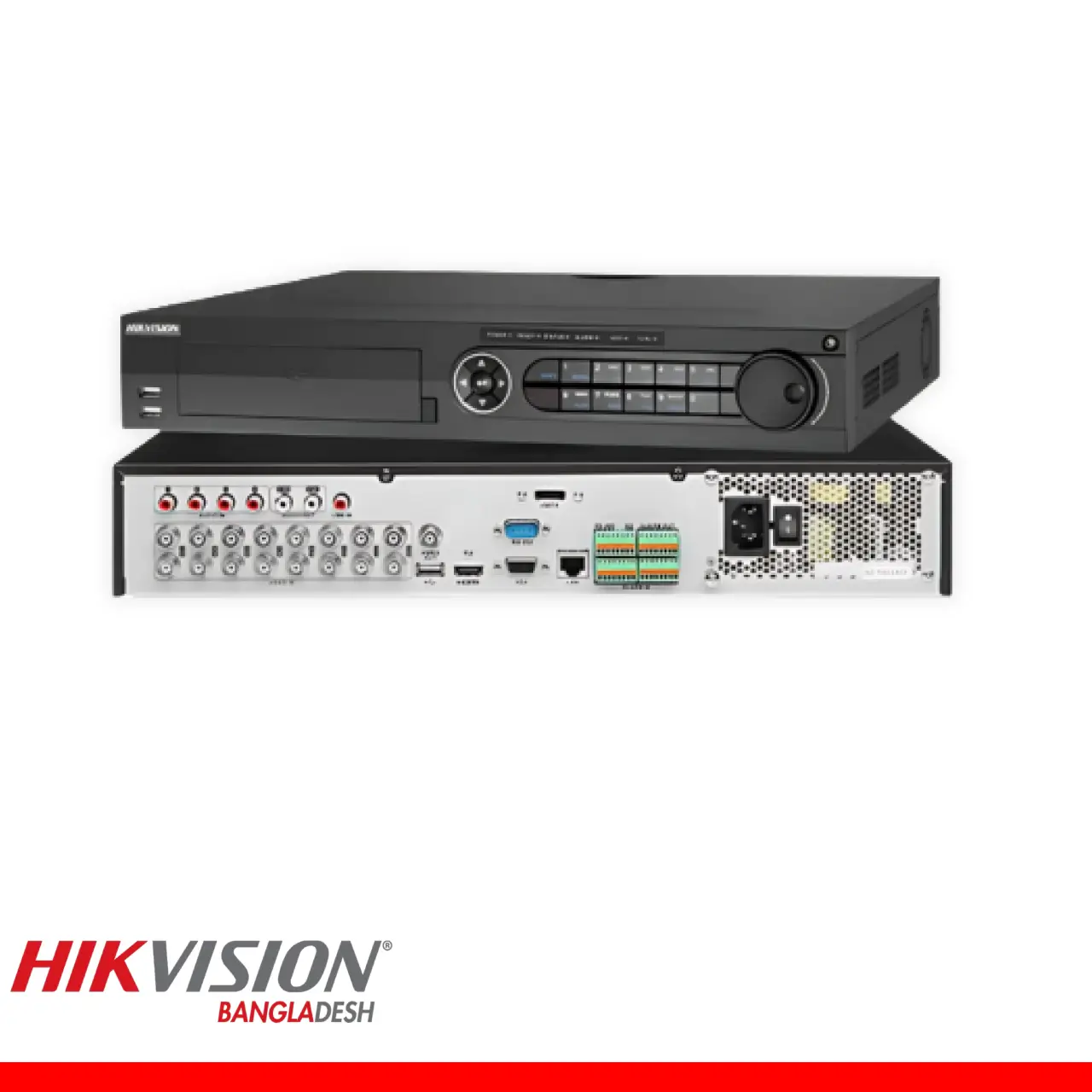

Hikvision DS-7316HQHI-K4 16-ch 1080p 1.5U H.265 DVR


In stock

16 channels and 4 HDDs 1.5U DVR

Efficient H.265 pro+ compression technology

5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)

Up to 24 network cameras can be connected

Brand: Hikvision
Model: DS-7316HQHI-K4
Offer Price: 38000
Warranty: 1 Year
Status: In Stock
Contact No: 01999-088831, 01999-088832, 01999-088834


Hikvision DS-7316HQHI-K4 is a 16-channel 1080p 1.5U H.265 Pro+ compression technology DVR. It is a part of Hikvision’s Ultra Series of DVRs, which are designed for high-end security applications

Specification Hikvision DS-7316HQHI-K4

Video Compression H.265 Pro+ /H.265 Pro /H.265 /H.264+ /H.264
Encoding Resolution 1080p lite mode is not enabled:
4 MP lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF
When 1080p Lite mode is enabled:
4 MP lite/3 MP/1080p lite/720p lite/VGA/WD1/4CIF/CIF
Frame Rate Main stream:
Main stream:
When 1080p Lite mode not is enabled:
For 4 MP stream access:
4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps
For 1080p stream access:
1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
When 1080p Lite mode is enabled:
4 MP lite/3 MP@15fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)
Video Bit Rate 32 Kbps to 6 Mbps
Audio Bit Rate 64 kbps
Dual-Stream Support
Audio Compression G.711 u
Stream Type Video, Video & Audio
Video And Audio
IP Video Input 8-ch (up to 24-ch)
Up to 6 MP resolution
Support H.265+/H.265/H.264+/H.264 IP cameras
Analog Video Input 16-channel BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
AHD Input
4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25*: The 3 MP signal input is only available for channel 1/2/3/4
CVBS Input
CVBS Output
1-ch, BNC (1.0 Vp-p, 75 Ω),
resolution: PAL: 704 × 576, NTSC: 704 × 480
Audio Input 1-ch, RCA (2.0 Vp-p, 1 KΩ)
Audio Output 1-ch, RCA (Linear, 1 KΩ)
2-way Audio 1-ch, RCA (2.0 Vp-p, 1 KΩ) independent
Synchronous Playback 16 channel
VGA/HDMI Output 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz,
1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Auxiliary Interface
SATA 4 SATA interface; RS-485 (half-duplex)
Capacity Up to 10 TB capacity for each disk
USB Interface Rear panel: 2 × USB 2.0
Alarm In/Out N/A
Remote Connections 128
Network Protocols TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, SNMP, ONVIF
Network Interface 1, RJ45 10M/100M/1000M self-adaptive Ethernet interface
Dimensions (W×D×H) 445 × 390 × 70 mm (17.5 × 15.4 × 2.8 inch)
Weights ≤ 5 kg (11 lb) (Without HDD)
Power Supply 100 to 240 VAC
Consumption ≤ 55 W (Without HDD)
Warranty 1(one) year warranty

Description Hikvision DS-7316HQHI-K4 16-ch 1080p 1.5U H.265 DVR

Hikvision DS-7316HQHI-K4 is a high-performance digital video recorder (DVR) that can record and manage up to 16 channels of analog high-definition video signals. It supports real-time video display, recording, and playback, and can store video and audio data on a hard drive or other storage devices. It also features a range of advanced security and surveillance features, including motion detection, video tampering alarm, network malfunction alarm, and more. Additionally, it has a user-friendly interface, making it easy to operate and monitor your security system. the Hikvision DS-7316HQHI-K4 is an ideal choice for those looking to secure their homes or businesses.

So, if you’re looking for a reliable and high-performance DVR for your surveillance needs, the Hikvision DS-7316HQHI-K4 is an excellent choice. With its advanced features, flexible storage options, and ease of use, you can have peace of mind knowing that your property is protected.

What is the price of Hikvision DS-7316HQHI-K4 16-ch 1080p 1.5U H.265 DVR Price in BD?

Ans: Hikvision DS-7316HQHI-K4 with 16-ch 1080p 1.5U H.265 DVR at the Latest Price of only 38000 tk from us, Up to 24 network cameras can be connected, and 4 HDDs 1.5U DVR. Get a warranty and offers on eligible orders. Contact us at 01999088831-34
