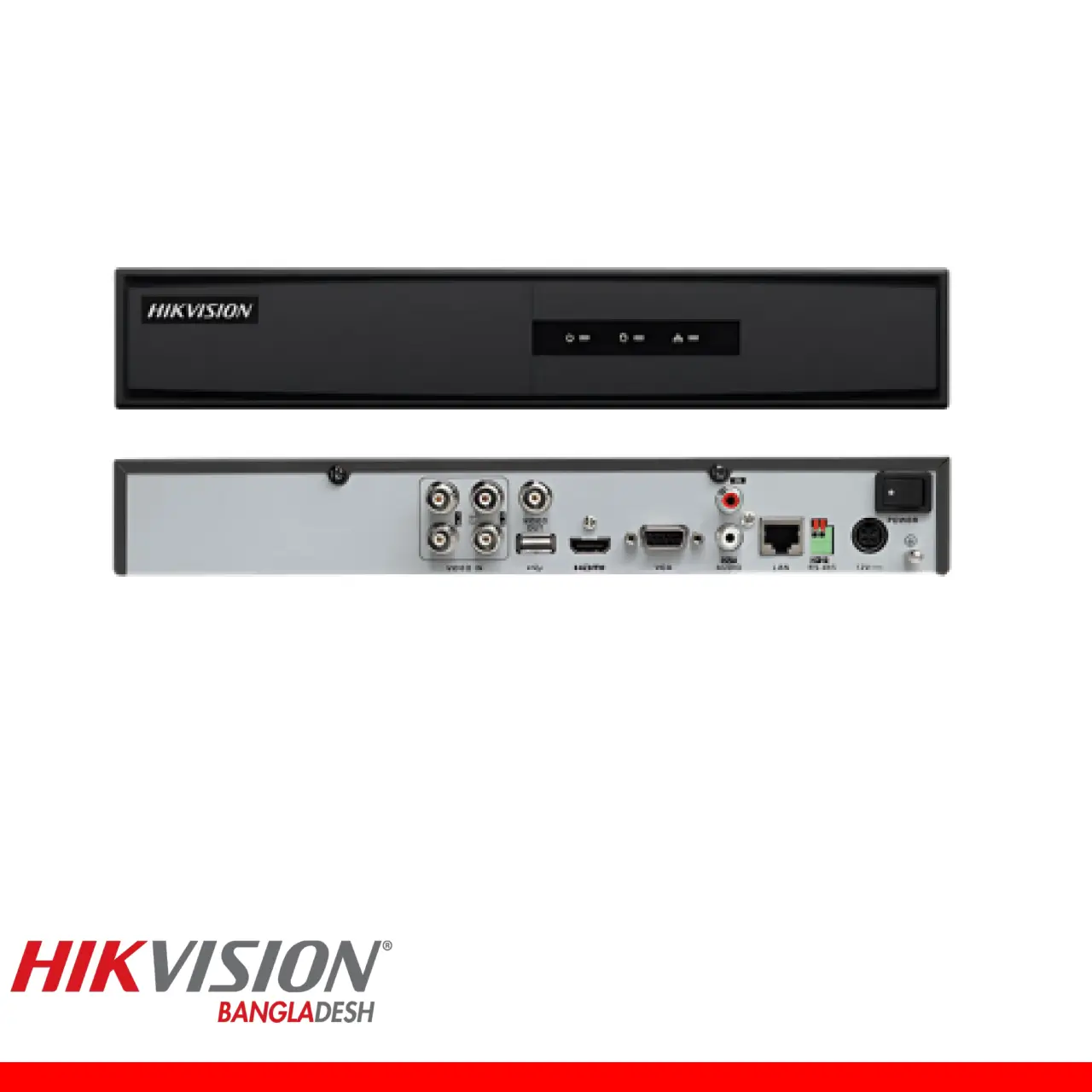

Hikvision DS-7204HGHI-F1 4-ch 1080p Lite 1U H.264 DVR


In stock

4 channels and 1 HDD 1U DVR

H.264+ / H.264 video compression

5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)

Up to 5 network cameras can be connected

Brand: Hikvision
Model: DS-7204HGHI-F1
Offer Price: 4200
Warranty: 1 Year
Status: In Stock
Contact No: 01999-088831, 01999-088832, 01999-088834


Hikvision DS-7204HGHI-F1 features H.264 video compression, which can save up to 90% of storage space compared to traditional MPEG-4 compression. It also supports dual streaming, so you can record high-resolution video for local storage and lower-resolution video for remote viewing

Specification Hikvision DS-7204HGHI-F1

Video Compression H.264+/ H.264
Encoding Resolution              When 1080p Lite mode not enabled: 720p Lite/WD1/4CIF/VGA/CIF
And when 1080p Lite mode enabled: 1080P lite/720p/WD1/4CIF/VGA/CIF
Frame Rate            Main stream:
Main stream: ,When 1080p Lite mode not enabled:,For 720p stream access: 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N),When 1080p Lite mode enabled:,1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N),Sub-stream: ,2CIF@6fps; CIF/QVGA/QCIF@ 25fps (P)/30fps (N)
Video Bit Rate 32 Kbps to 4 Mbps
Audio Bit Rate 64 kbps
Dual Stream Support
Audio Compression G.711 u
Stream Type Video, Video and Audio
Video And Audio
IP Video Input 1-ch (up to 5-ch) Up to 960p resolution
Support H.264+/H.264 IP cameras
Analog Video Input 4-channel BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
Turbo HD Input
AHD Input
1080p25, 1080p30, 720p25, 720p30
CVBS Input Pal/Ntsc
Audio Input 1-ch, RCA (2.0 Vp-p, 1 KΩ)
Audio Output 1-ch, RCA (Linear, 1 KΩ)
2-way Audio Reuse the 1st audio input
Synchronous Playback 4 channel
VGA/HDMI Output 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Auxiliary Interface
SATA 1 SATA interface
Capacity Up to 6 TB capacity for each disk
USB Interface Rear panel: 2 × USB 2.0
Alarm In/Out N/A
Remote Connections 32
Network Protocols TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
Network Interface 1, RJ45 10M/100M self-adaptive Ethernet interface
Dimensions (W×D×H) 260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inch)
Working Temperature -10 °C to 55 °C (14 °F to 131 °F)
Weights ≤ 1 kg (2.2 lb) (Without HDD)
Power Supply 12 VDC
Consumption ≤ 8 W (Without HDD)
Warranty 1(one) year warranty

Hikvision DS-7204HGHI-F1 4-ch 1080p Lite 1U H.264 DVR

Hikvision DS-7204HGHI-F1 4-ch 1080p Lite 1U H.264 DVR. Up to 6 TB Storage capacity, Up to 5 network cameras that can be connected, and  Video Compression: H.264+/H.264. Hikvision DS-7204HGHI-F1 4-ch 1080p Mini 1U Lite H.264 DVR offers a 1-year warranty. Dimensions: 260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inch), Weights: ≤ 1 kg (2.2 lb) Without HDD, Power Supply: 12 VDC, Consumption: ≤ 8 W Without HDD, USB Interface: Rear panel: 2 × USB 2.0, IP Video Input: 4 channels and 1 HDD mini size DVR, H.264+ / H.264 video compression, Video Bit Rate: 64 Kbps to 4 Mbps and Audio Bit Rate: 64 kbps, Network Protocols: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF. We provide the best products. So, You can find high-quality DVRs at the best price from us.

What is the latest price of Hikvision DS-7204HGHI-F1 4-CH 1080P Lite 1U H.264 DVR Price in BD?

This Hikvision DS-7204HGHI-F1 with 4-ch 1080p Lite 1U Lite H.264 DVR at the Latest Price of only 4200 tk from us, Up to 5 network cameras can be connected, and you can get it at the best price from us in BD. Also, get a warranty and offers on eligible orders. Contact us at 01999088831-34

Additional information

Weight 1 kg
Dimensions 26 × 22 × 4.5 cm
