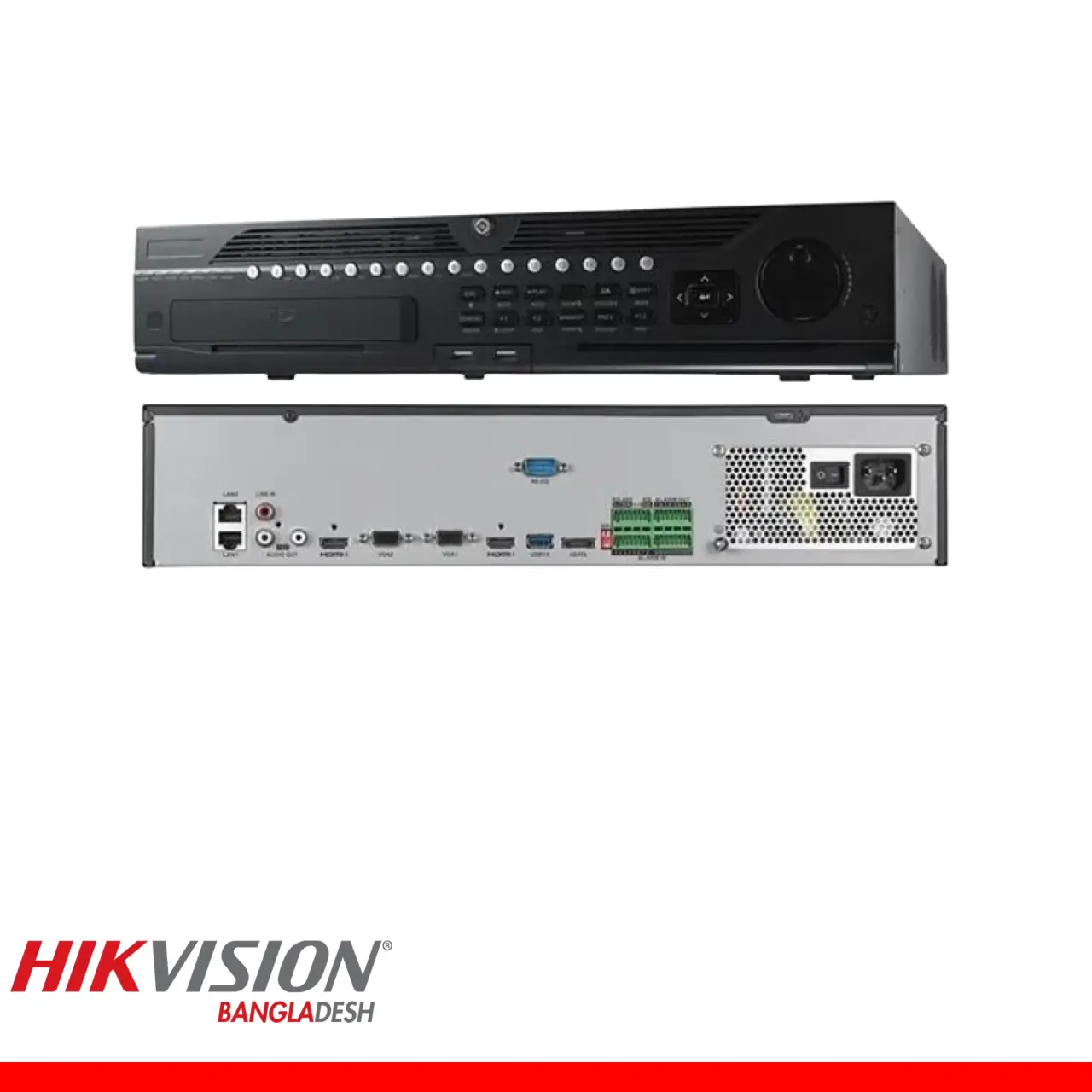

Hikvision DS-9632NI-I8 is a 32 channel 2U 4K NVR from Hikvision. It comes with Third-party network cameras supported Up to 5 Megapixels resolution recording, HDMI and VGA output at up to 1920×1080P resolution with 16/32-ch network cameras which can be connected with 160M incoming bandwidth. This NVR supports up to 8 HDD SATA interfaces with each HDD supporting up to 10TB with network detection, including network delay, packet loss, etc.
Specification Hikvision DS-9632NI-I8
| General | |
|---|---|
| Weight | 10 kg |
| Dimension | 445 × 471 × 92 mm (17.5″× 18.5″ × 3.4″) |
| Temperature | -10 to +55º C (+14 to +131º F) |
| Consumption | 30 W |
| Power Supply | 100 to 240 VAC, 50 to 60 Hz with 2U chassis |
| Video And Audio | |
| IP Video Input | 32 channel, Up to 12 MP resolution |
| Bandwidth | when RAID is enabled: incoming 200 Mbps, outgoing 200 Mbps |
| Audio | Two-Way Audio; 1-ch, RCA (Linear, 1 KΩ) |
| HDMI Output (1,2) | 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| VGA Output (1,2) | 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz |
| RAID Type | 4, RAID0, RAID1, RAID5, RAID6, RAID10 |
| Decoding | |
| Format | H.265+/H.265/ H.264+/H.264 |
| Recording Resolution | 32 MP/ 24 MP/ 12 MP/8 MP/6 MP/5 MP/ 4MP/ 3MP/ 1080p/ UXGA/ 720p/ VGA/ 4CIF/ 2CIF/ CIF/QCIF |
| Decoding Capability | 1-ch 12 MP (20fps) / 4-ch 8 MP (25fps) / 8-ch 4MP (30fps) / 16-ch 1080p (30fps) |
| Playback | 16-ch Synchronous |
| Network | |
| Serial Po | RS-232 RS-485 Keyboard |
| Remote Connections | 128 |
| Network Protocols | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, NTP, SADP, SMTP, NFS, HTTPS |
| Network Interface | 2, RJ45 10/100/1000 Mbps self-adaptive Ethernet interface |
| Interface | |
| SATA | Eight |
| Capacity | Up to 10 TB capacity for each disk |
| Alarm In/Out | 16/4 |
| USB Interface | 2 × USB 2.0 |
| Warranty | |
| Warranty | 1(one) year warranty |
Hikvision DS-9632NI-I8 32-ch 2U 4K NVR
Hikvision DS-9632NI-I8 is a network video recorder (NVR) that can support up to 32 IP cameras. It has a 2U rack-mounted design and is capable of recording and managing high-resolution 4K video streams. The NVR supports H.265, H.264+, H.264, and MPEG4 video compression formats, which can effectively reduce video file size while maintaining high-quality video footage. The DS-9632NI-I8 NVR comes equipped with 8 SATA ports, each of which can support up to 10 TB of storage capacity, providing a total of 80 TB of storage space. This allows for extended periods of recording and archiving of video footage. Additionally, it has a RAID configuration option, allowing for redundancy and fault tolerance in case of hard drive failure.
Overall, the Hikvision DS-9632NI-I8 NVR is a powerful and reliable network video recorder that can provide robust video surveillance management for large-scale applications.
What is the price of Hikvision DS-9632NI-I8 32 channel NVR Price in Bangladesh?
Hikvision DS-9632NI-I8 with 32-ch 2U 4K NVR at the Latest Price of only 90000 tk from us, Up to 320 Mbps high incoming bandwidth, 2 HDMI and 2 VGA interfaces, 8 HDD slots. Contact us – at 01999088831-34
