Hikvision DS-3E0109P-E/M(B) is a layer 2 Unmanaged 100M PoE switch. The power supply line can be located up to 250 meters away. When linked to the high priority ports, it also supports the prior and reliable transmission of the significant surveillance area video
Specification Hikvision DS-3E0109P-E-M 8 Port Fast Ethernet Unmanaged POE Switch
| General | |
|---|---|
| Weight | Gross 0.89 kg, Net 0.35 kg |
| Dimension | 170 mm × 27.6 mm × 93.1 mm (6.7” × 1.1” × 3.7”) |
| Temperature | -10 to +55º C (+14 to +131º F), 5% to 95% Humidity |
| Power Consumption | 5W In Idle, Max 65 W |
| Power Supply | 48 VDC, 1.35 A |
| Shell | Metal material, fan-free design |
| Network Parameters | |
| MAC Address Table | 2K |
| Switching Capacity | 1.8 Gbps |
| Standard | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Forwarding Mode | Store-and-forward switching |
| Port | 8 × 10/100 Mbps PoE ports, and 1 × 10/100 Mbps RJ45 port type, full duplex, MDI/MDI-X adaptive |
| Internal Cache | 1 Mbits |
| Packet Forwarding Rate | 1.339 Mpps |
| PoE Power Supply | |
| PoE Standard | IEEE 802.3af, IEEE 802.3at |
| PoE Power Pin | End-span: 1/2(-), 3/6(+), Mid-span: 4/5(+), 7/8(-), 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-) |
| PoE Port | Ports 1 to 8 |
| Port Power | Max 30 W, Budget 60 W |
| Approval | |
| Safety | UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013) |
| EMC | FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 201
3, EN 55024: 2010 +A1: 2015) |
| Chemistry | CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
| Long Range | Ports 1 to 8: up to 300 m; and the speed rate of the port is 10 Mbps. |
| Warranty | |
| Warranty | 1(one) year warranty |

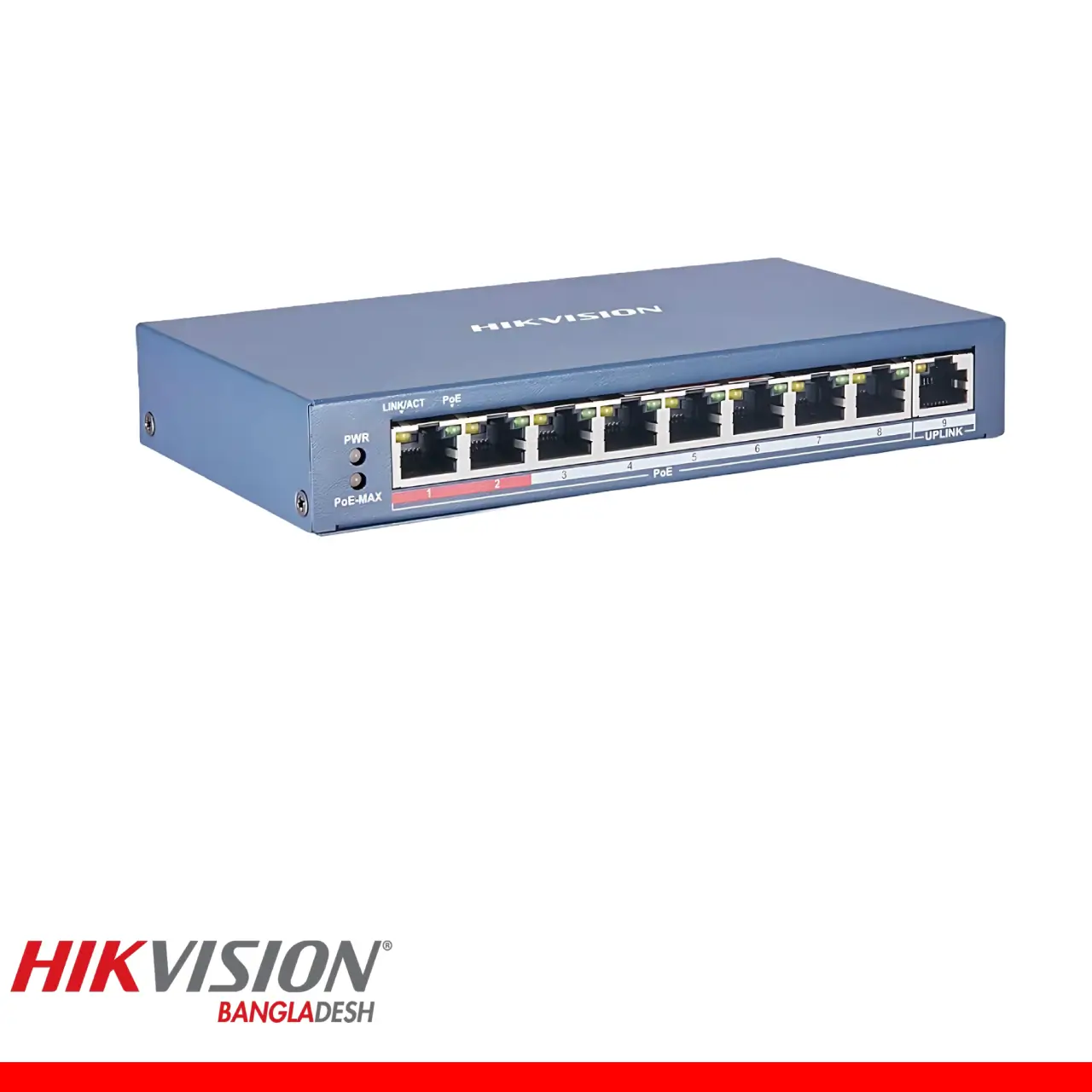

Hikvision DS-3E0109P-E-M 8 Port Fast Ethernet Unmanaged POE Switch
Hikvision DS-3E0109P-E-M 8 Port Fast Ethernet Unmanaged POE Switch, Up to 300 m Long Range PoE Transmission with 6KV Surge Protection. Hikvision DS-3E0109P-E-M Intelligent PoE Management. When the power supply exceeds the limit, PoE ports intelligently manage the power supply, which extends the switch lifetime. Manufacturing by Hikvision Comes With 1 Year Warranty. It design for Video Transmission. Design for Video Transmission. VIP port ensures important data transmission when network congestion occurs. The distance between IPCs and switch can reach maximum 300 meters. Our Resource Technology Offers you 1 year warranty for this product.
What is the price of Hikvision DS-3E0109P-E-M 8 Port Fast Ethernet Unmanaged POE Switch Price in Bangladesh?
Hikvision DS-3E0109P-E-M 8 Port Fast Ethernet Unmanaged POE Switch at the Latest Price of only 5800 tk from us, Up to 300 m Long Range PoE Transmission, 6KV Surge Protection Contact us – at 01999088831-34
