Specification of Hikvision DS-2CD2143G2-IU :
| Camera | |
|---|---|
| Image Sensor | 1/3 inch Progressive Scan CMOS |
| Minimum Illumination | Color: 0.005 Lux @(F1.6, AGC ON), B/W: 0 Lux with IR |
| Angle Adjustment | Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355° |
| Wide Dynamic Range | Digital WDR, 120dB |
| Day & Night | IR Cut filter |
| Maximum Resolution | 2688 × 1520 |
| Shutter Time | 1/3 s to 1/100,000 s |
| Video | |
| DORI | Yes |
| Stream Info | Main Stream: 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720); 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720) Sub stream: 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240); 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240); Third Stream available |
| Region Of Interest (ROI) | 1 fixed region for main-stream and sub-stream |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264; sub-stream: H.265/H.264/MJPEG; Third stream: H.265/H.264 |
| Video Bit Rate | 32 Kbps – 8 Mbps |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.265 Type | Main Profile |
| Lens & Illuminator |
|
| Lens Type, FOV and Mount | Fixed 2.8 mm, horizontal FOV 103°, vertical FOV 55°, diagonal FOV 122°; Fixed 4 mm, horizontal FOV 84°, vertical FOV 45°, diagonal FOV 100°; 6 mm; Lens Mount: 12 |
| Aperture | F1.6 |
| IR Range | 30 meter |
| Wavelength | 850 nm |
| Smart Supplement Light | Yes |
| Network | |
| API | ONVIF (PROFILE S, PROFILE G), ISAPI |
| Simultaneous Live View | Up to 6 channels |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, RTCP, NTP, IGMP, QoS, UDP, IPv6, SSL/TLS |
| Network Storage | Support Micro SD/SDHC/SDXC card (256 GB), local storage and NAS (NFS, SMB/CIFS), ANR |
| User/Host | Up to 32 users. 3 user levels: administrator, operator and user |
| Client & Web Browser |
iVMS-4200, Hik-Connect, Hik-Central Browser: IE8+, Chrome31.0+, Firefox30.0+, Safari8.0+ |
| Image | |
| Day/Night Switch | Day, Night, Auto Schedule |
| Image Enhancement | BLC, 3D DNR; SNR: ≥ 52 dB |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, AGC and white balance adjustable by client software or web browser |
| Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| Basic Event | Motion detection (human and vehicle targets classification), video tampering alarm, exception |
| General | |
| Dimension | Without Package: 121.4 × 92.2 mm (Ø4.8″ × 3.7″) With Package: 150 × 150 × 141 mm (5.9″ × 5.9″ × 5.6″) |
| Weight | 570 g (806 g with Package) |
| Power | 12 VDC ± 25%, 0.4A, max. 5 W, 5.5 mm coaxial power plug PoE: 802.3af, Class 3, 36 V to 57 V), 0.20 A to 0.10 A, max. 6.5 W |
| Startup & Operating Condition | -30 °C to 60 °C (-22 °F to 140 °F) Humidity 95% or less |
| Function | Anti-flicker, heartbeat, password reset via e-mail, pixel counter |
| Material | Front cover: metal, back cover: plastic |
| Protection | IP67 (IEC 60529-2013); IK10 |
| Warranty | |
| Warranty | 1(one) year warranty |

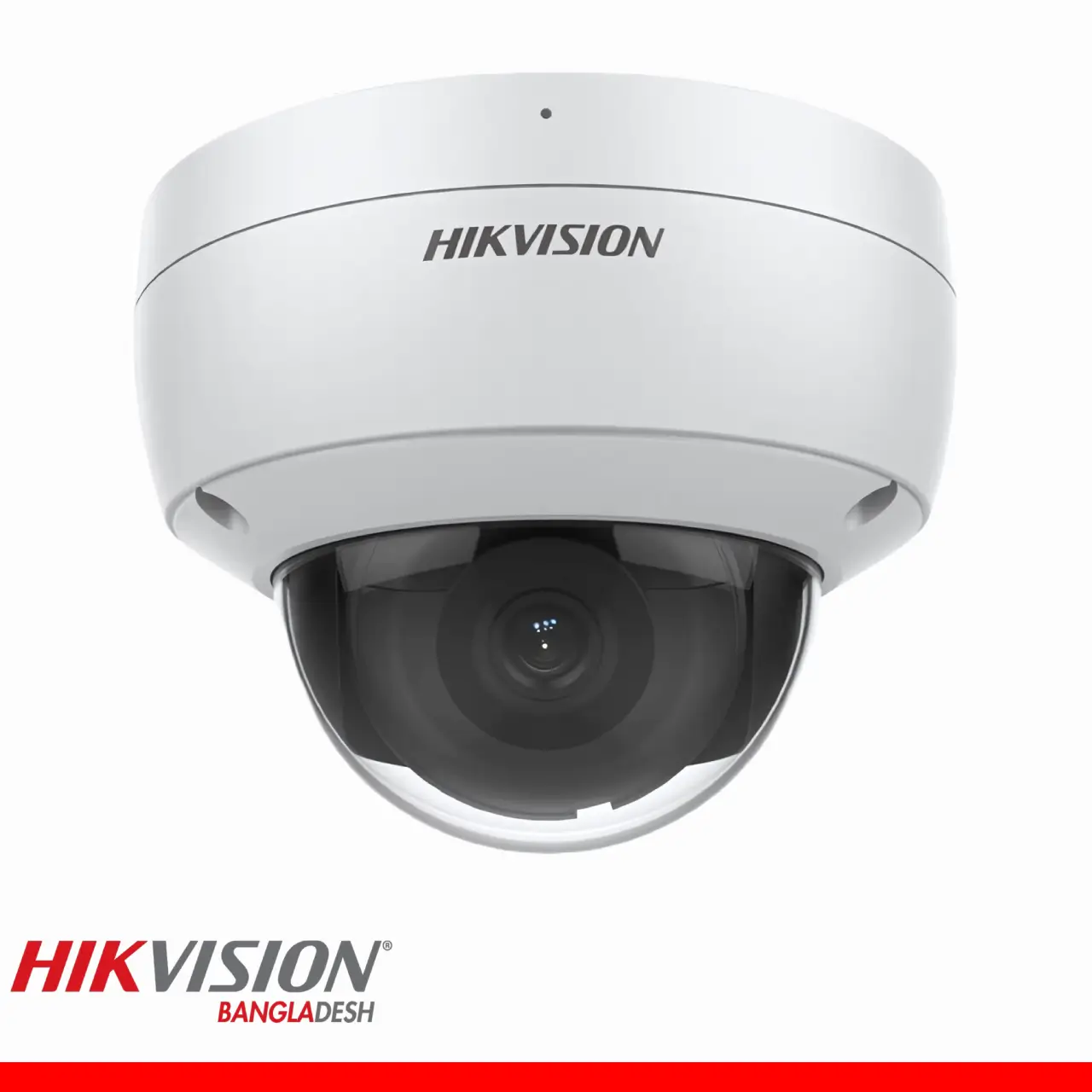

Description Hikvision DS-2CD2143G2-IU 4MP Audio Fixed Dome IP Camera
Hikvision DS-2CD2143G2-IU is a 4-megapixel fixed dome IP camera designed for indoor surveillance applications. It features a 1/3″ progressive scan CMOS sensor and a built-in fixed lens with a view angle of 101°. The camera provides clear and detailed images with a maximum resolution of 2688 x 1520. It is also ONVIF compliant, allowing it to be integrated with a wide range of third-party video management software (VMS) and network video recorders (NVR). The compact design of the DS-2CD2143G2-IU makes it suitable for indoor surveillance applications, such as schools, offices, retail stores, and other commercial buildings. With its high-quality video, built-in microphone, and intelligent video analytics, the Hikvision DS-2CD2143G2-IU is a good choice for organizations that need to monitor their indoor environments.
What is the price of Hikvision DS-2CD2143G2-IU 4MP Audio Fixed Dome IP Camera Price in BD?
Ans: Hikvision DS-2CD2143G2-IU 4MP Vandal Built-in Mic Fixed Dome IP Camera at the Latest Price of only 8500 tk from us, Focus on human and vehicle targets classification based on deep learning. Contact us at 01999088831-34
