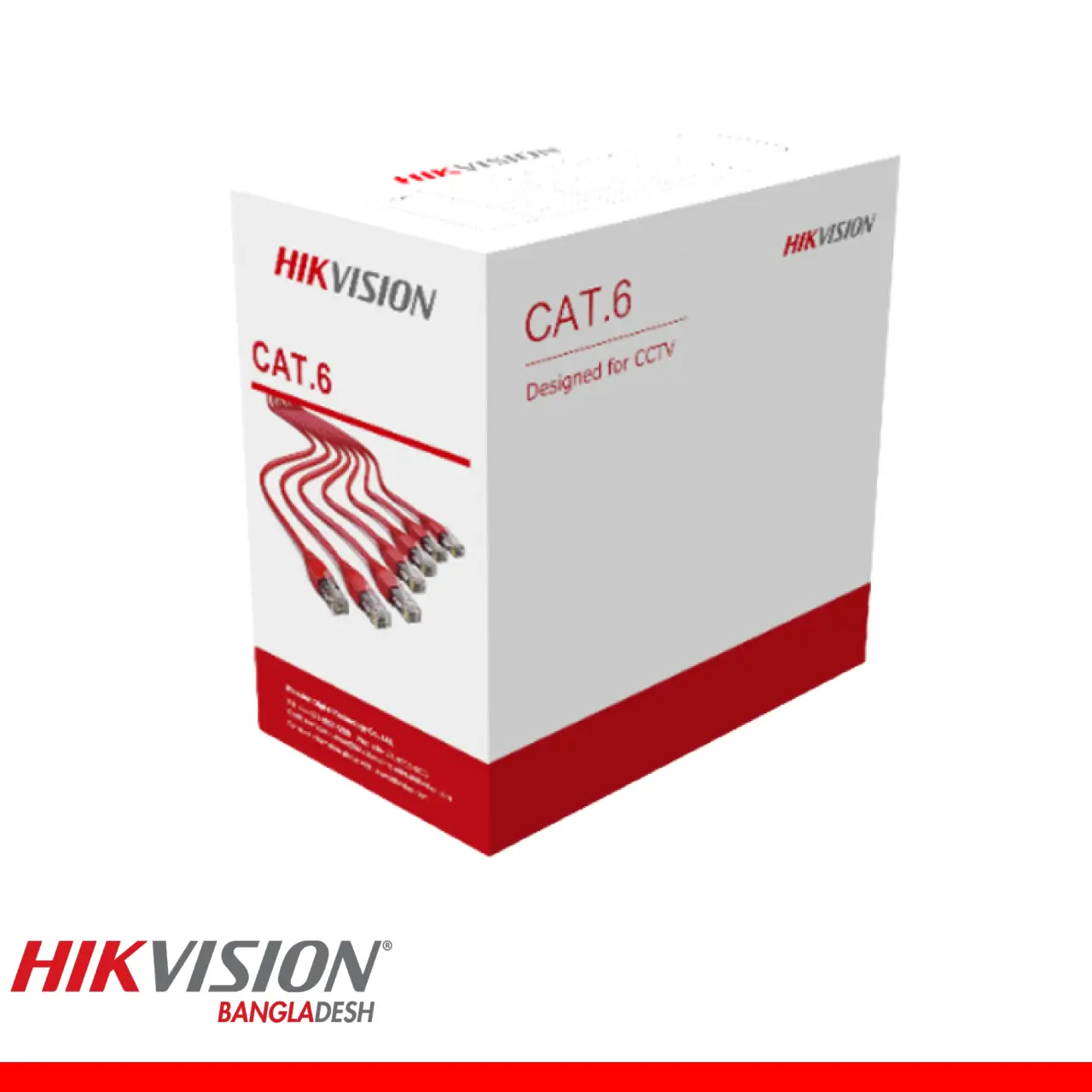

Hikvision Cat6 White Network Cable

Hikvision Cat6 Cable Network Cable (DS-1LN6U-SC0) is a high-quality networking cable which is very useful for data transmission. It is a Category 6 cable, that means it supports higher bandwidth and faster data speeds compared to lower-category cables. The cable is compliant with reference standards ISO/IEC11801, ANSI/TIA-568-C.2, and RoHS 2.0, ensuring its compatibility and adherence to industry regulations. This UTP (Unshielded Twisted Pair) cable features a solid-bare copper conductor with a diameter of 0.55±0.005 mm (23 AWG). The conductor is made of 99.95% pure copper, which ensures excellent conductivity and signal integrity

Description

Hikvision Cat6 Cable Network Cable includes a rip cord, which makes it easier to remove the outer sheath if needed, and a separator that separates the pairs of twisted conductors, reducing crosstalk and enhancing overall performance. The cable has a tensile strength of ≥ 13.5 Mpa and an elongation of ≥ 150% before aging. During the aging period of 100? × 24h × 10d, the tensile strength remains ≥ 12.5 Mpa, and the elongation remains ≥ 125%. The cable can withstand cold bending at -20 ± 2 × 4h with a bending radius of 8 times the cable’s outer diameter without visible cracks. The electrical characteristics of the cable are impressive, with an impedance of 100 ± 15Ω at ≤ 100MHz and 100 ± 25Ω at 100-250MHz. The delay skew is ≤ 45 ns/100 m within the frequency range of 1.0-250.0 MHz. The DC resistance is ≤ 9.38 Ω/100 m, and the DC conductor resistance unbalance is ≤ 5.0%.
